Xingtai Boshuo Nws pib Technology Co., Ltd. Yog hais tias koj yuav mus rau cov lag luam wholesale bulk spa nqaim v qhwv siv nyob rau hauv Suav teb, txais tos kom tau txais pricelist thiab dawb qauv los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab tus nqi qis.
Product Description
SPA Narrow V Wrapped Belt yog cov khoom siv hluav taws xob sib kis tau tsim los rau cov ntawv thov uas qhov chaw txwv thiab kev ua tau zoo yog qhov tseem ceeb rau kev txiav txim siab. Cov khoom no suav nrog ntau yam ntawm nqaim profiles, suav nrog SPZ, SPA, SPB, thiab SPC series, nrog rau cov kev xaiv tshwj xeeb xws li SPA 1250, SPB 1600, thiab SPC 4000 muaj rau ntau yam tsav tsheb. Cov kev siv feem ntau muaj xws li compressors, twj, kiv cua, thiab lwm yam khoom siv uas nqaim txoj siv sia muaj txiaj ntsig zoo. Kev tsim kho ob npaug muab kev ua kom ntev ntxiv rau kev xav tau ntau dua. Tsim los ntawm cov cua sov- cov roj hmab tiv taus thiab siab - lub zog polyester qaum, txoj siv sia no muab cov yam ntxwv qis qis thiab kev ua haujlwm ruaj khov ntawm nws lub neej kev pabcuam.
Cov yam ntxwv ntawm cov khoom
Qhov nqaim qhwv V- txoj siv sia no yog tsim los rau siab - kev xa hluav taws xob zoo hauv cov tshuab tsav uas muaj qhov chaw tsawg. Cov roj hmab sib xyaw yog tsim los rau kev tiv thaiv tshav kub, tswj kev yoog raws thaum ua haujlwm siab -. Lub tensile qaum siv tshwj xeeb kho siab -lub zog polyester los tswj elongation thiab tswj lub zog sib xws, tshwj xeeb tshaj yog thaum siv nrog me me pulley diameters. Cov ntaub qhwv cov ntaub npog muab kev tiv thaiv cov roj thiab cov khoom siv thaum tuav lub- kev sib txhuam qis kom txo qis zog poob. Txoj siv sia siv suav nrog cov khoom siv tiv thaiv- zoo li qub thiab ua kom muaj suab nrov ua haujlwm tsawg, ua rau nws haum rau compressors, twj, thiab siab -cov kiv cua ceev uas muaj feem cuam tshuam.

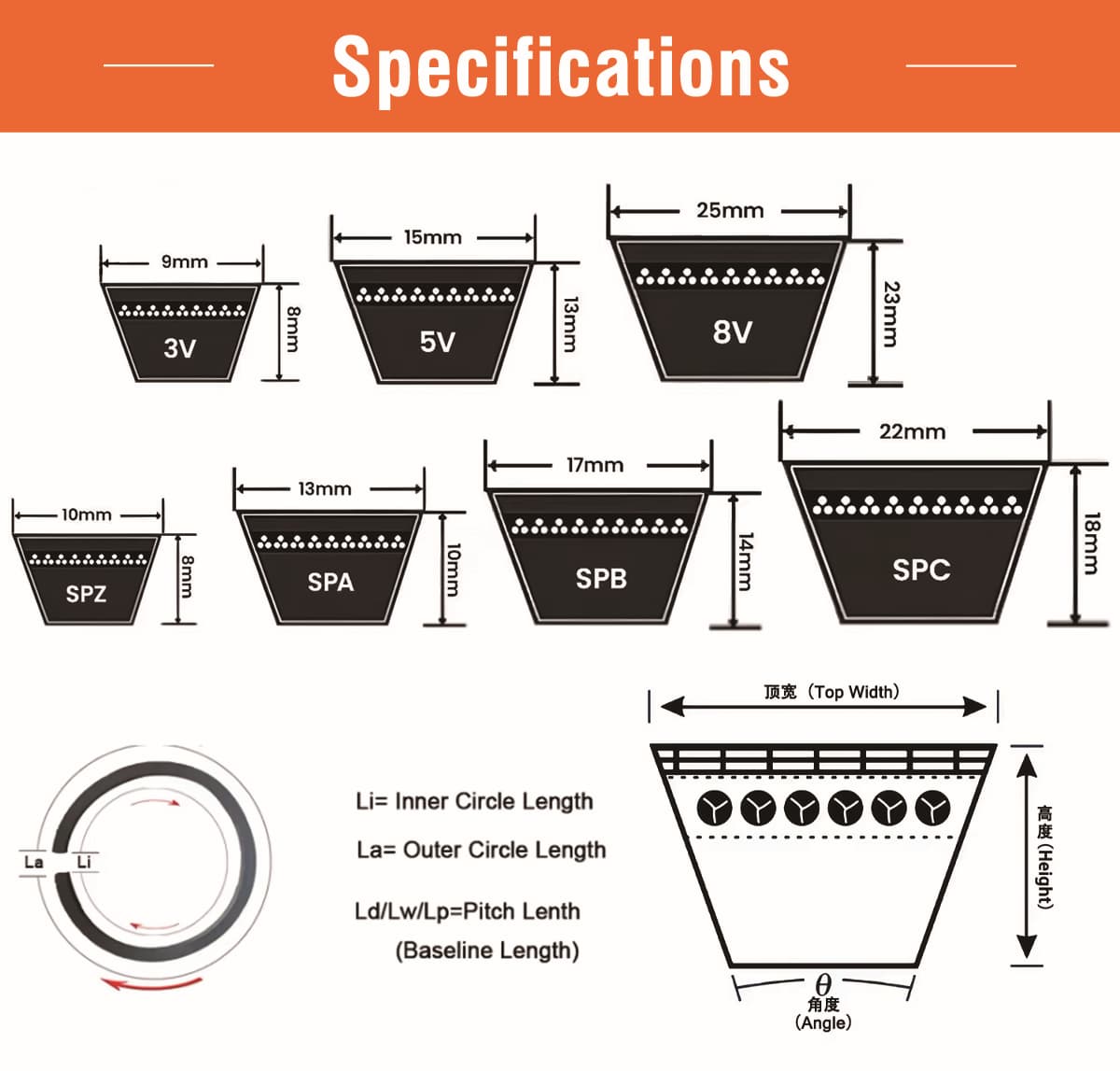

Khoom Paramenters
|
Hom |
TOP Dav |
Pitch Dav |
Qhov siab |
Langer Range |
Lub kaum sab xis |
|
Chav tsev |
mm |
mm |
mm |
mm |
|
|
SPZ (FM) |
10 |
8 |
8 |
400-4000 |
40 degree |
|
SPA |
13 |
11 |
10 |
600-5000 |
40 degree |
|
SPB |
17 |
14 |
14 |
1270-10000 |
40 degree |
|
SPC |
22 |
19 |
18 |
1900-18000 |
40 degree |
|
3V(9N) |
9.5 |
/ |
8 |
400-4000 |
40 degree |
|
5V(15N) |
16 |
/ |
13.5 |
1270-10000 |
40 degree |
|
8V(25N) |
25.5 |
/ |
23 |
2540-18000 |
40 degree |
Yog tias koj muaj cov cai tshwj xeeb, thov hu rau peb. Peb yuav ua tau raws li koj xav tau.
Yam khoom
|
Khoom npe |
Narrow V qhwv Belt |
|
Qauv |
SPZ, SPA, SPB, SPC, 3V, 5V, 8V |
|
Qhov Chaw Keeb Kwm |
Hebei, Suav |
|
Length Marking |
Siv tau ntev (La) |
|
Lub kaum sab xis |
40 degree |
|
Khoom siv |
Roj hmab |
|
Tensile Cord |
Siab zog polyester qaum / Aramid qaum |
|
Cov ntaub qhwv |
Dipped polyester paj rwb canvas (roj resistant, hnav resistant) |
|
Xim |
Dub |
|
Nta |
Siab zog, tsis tshua muaj stretch, hnav resistant, kub resistant, roj resistant, anti static, siab kis tau tus mob efficiency, me me pulley adaptability |
|
Ntsiab lus |
Fais fab kis txoj siv |
|
Daim ntawv thov |
Kev lag luam machinery (compressors, kiv cua, twj), kev ua liaj ua teb machinery (harvesters, tsheb laij teb), cov cuab yeej siv, cov khoom siv mining |
|
Ntim |
Standard export thawv / Ntim ntim / Xim lub thawv / Custom label |
|
MOQ |
100 pcs |
|
Kev kho kom haum |
Yog (Length, khoom, ntim) |
|
Daim ntawv pov thawj |
ISO 9001, RoHS |
|
Hom Lub Npe |
Cov neeg siv khoom Brand |
Tuam txhab Profile
XingTai Boshuo tau ua haujlwm hauv kev lag luam roj hmab siv txij li xyoo 2014. Lub tuam txhab ua haujlwm raws li kev sib koom ua ke nrog rau hauv - lub peev xwm hauv tsev hla R&D, kev tsim khoom, thiab kev muag khoom. Cov khoom lag luam suav nrog PK txoj siv sia, siv sijhawm ntev, V- txoj siv sia, cov hlua khi, cov hlua siv, roj foob, thiab cov ntsaws ntsaws. Lub Hoobkas muaj ntau tshaj 2,000 square meters thiab ntiav ntau tshaj 100 tus neeg ua haujlwm ntau lawm. Manufacturing kab npog tag nrho cov txheej txheem los ntawm cov khoom compounding mus rau tiav cov khoom soj ntsuam. Lub tuam txhab tuav ntau tshaj 20,000 pwm hom los txhawb ntau yam kev qhia tshwj xeeb thiab kev cai. Kev lag luam xa tawm mus txog ntau dua 80 lub teb chaws, pabcuam kev ua liaj ua teb, kev tsim kho, mining, thiab automotive sectors. ISO 9001 thiab RoHS cov ntawv pov thawj tam sim no.
■ Kev Pabcuam Txheej Txheem Txheej Txheem
Lub tuam txhab muab cov qauv kev txhawb nqa thoob plaws lub voj voog kev yuav khoom. Thaum lub sij hawm ua ntej -muag theem, peb pab xaiv cov khoom raws li qhov yuav tsum tau ua ntawm daim ntawv thov, kev teeb tsa rub lub log, thiab cov khoom thauj khoom. Thaum lub sijhawm tsim khoom, kev txiav txim nce qib raug saib xyuas thiab cov neeg siv khoom raug hloov kho raws li lub sijhawm teem tseg. Tom qab- kev xa khoom, kev txhawb nqa muaj nyob rau kev taw qhia kev teeb tsa thiab kev nug txog kev ua haujlwm. Pab neeg pabcuam teb rau cov neeg siv khoom sib txuas lus raws sijhawm. Lub moj khaum no txhawb kev txhim kho kev lag luam kev sib raug zoo.
Client Feedback
Kev tawm tswv yim los ntawm cov neeg siv khoom hauv kev lag luam thiab kev ua liaj ua teb feem ntau tau txais txiaj ntsig zoo txog kev ua haujlwm ntawm peb txoj hlua nqaim V-. Cov lus tshwj xeeb feem ntau hais txog kev ua haujlwm kub thiab qhov ruaj khov thaum lub sijhawm ua haujlwm. Ntau tus neeg siv khoom tau rov qab los rau kev txiav txim ntxiv tom qab kev ntsuam xyuas thawj zaug. Peb tshuaj xyuas cov neeg siv khoom tawm tswv yim tsis tu ncua thiab suav nrog cov kev soj ntsuam cuam tshuam rau hauv peb cov txheej txheem kev txhim kho txuas ntxiv mus.
Peb Shipping
Peb xa mus rau cov neeg siv khoom hauv ntau tshaj 80 lub teb chaws thoob plaws Asia, Europe, Americas, Africa, thiab Middle East. Lub chaw thauj khoom sib koom tes nrog ntau tus neeg nqa khoom kom tau txais cov nqi thauj khoom sib tw thiab tswj xyuas cov sijhawm caij tsheb thauj mus los. Cov ntaub ntawv taug qab thiab cov ntaub ntawv xa khoom yog muab rau txhua qhov kev txiav txim thoob ntiaj teb.
FAQ
Q1: Nws puas tuaj yeem tau txais cov qauv rau kev ntsuam xyuas?
--- Yog. Cov qauv ntau muaj nyob rau ntawm tib nqe nqi raws li kev txiav txim ntau. Kev xa khoom yog npaj los ntawm DHL, TNT, FedEx, EMS, lossis tus neeg nqa khoom ntawm koj xaiv.
Q2: Lub sijhawm ua khoom lag luam raug cai yog dab tsi?
--- Ntau lub sij hawm nyob ntawm qhov kev txiav txim ntim. Kev txiav txim me me feem ntau xav tau 10 mus rau 15 hnub. Cov qauv txiav txim feem ntau ua tiav hauv 20 mus rau 30 hnub. Rau qhov ntau dua, lub sij hawm txhuas yuav raug teev thaum lub sij hawm hais.
Q3: Puas tuaj yeem siv lub npe nrov?
--- Yog. Lub tuam txhab npe lossis lub logo tuaj yeem luam tawm ntawm txoj siv sia thiab ntim khoom. Tsim cov ntaub ntawv yuav tsum tau muab ua ntej kev tsim khoom pib.
Q4: Cov nqe lus them nqi dab tsi muaj?
--- Peb lees txais T / T nrog 30% tso nyiaj thiab 70% tshuav nyiaj ua ntej xa khoom, nrog rau L / C thiab PayPal.
Q5: Cov khoom lag luam zoo li cas?
--- Cov lus hais feem ntau yog muab los ntawm FOB cov lus. EXW, CIF, thiab CNF tus nqi kuj muaj raws li qhov kev thov.
Cim npe nrov: Tuam Tshoj spa nqaim v qhwv siv, Tuam Tshoj spa nqaim v qhwv siv, manufacturers, lwm tus neeg, Hoobkas
